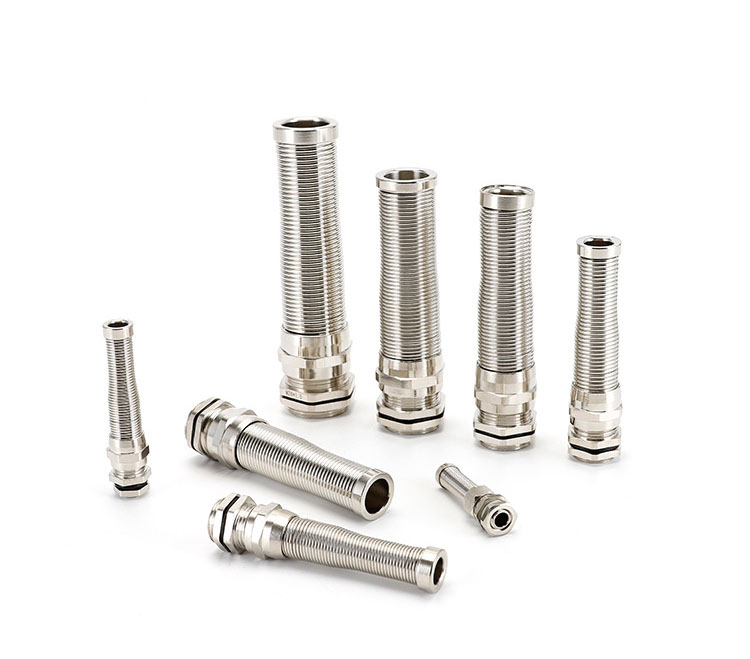

Brass Spiral M,PG,NPT,G Metal Cable Glands Anti Bending
Please click on the email to contact me
sales@gowsen.com- Thread: M, PG thread.
- Materials: Brass with nickel plated .
- Protection degree: IP68-10 Bar. Furnished with insulating liner.
- Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
- Remark: NPT Thread and G thread can also be produced.
| Code 产品编号 | Thread 螺牙规格 | Cable Range (mm) 适用电缆 | Thread Length GL (mm) 螺纹长度 | Body Height H+GL (mm) 结合长度 | Spanner Size (mm) 扳手径 |
|---|---|---|---|---|---|
| M12-MTSP | M121.5 | 3-6.5 | 7 | 65 | 14 |
| M12-MTSP | M121.5 | 4-8 | 8 | 68 | 17 |
| M14-MTSP | M141.5 | 4-8 | 8 | 68 | 17 |
| M16-MTSP | M161.5 | 4-8 | 8 | 68 | 17 |
| M16-MTSP | M161.5 | 5-10 | 8 | 75 | 20 |
| M18-MTSP | M181.5 | 5-10 | 8 | 75 | 20 |
| M20-MTSP | M201.5 | 6-12 | 8 | 76 | 22 |
| M20-MTSP | M201.5 | 10-14 | 8 | 80 | 24 |
| M22-MTSP | M221.5 | 10-14 | 8 | 80 | 24 |
| M24-MTSP | M241.5 | 10-14 | 9 | 80 | 24 |
| M24-MTSP | M24*1.5 | 12-16 | 9 | 86 | 27 |
| M25-MTSP | M251.5 | 10-14 | 9 | 80 | 30 |
| M25-MTSP | M251.5 | 12-16 | 9 | 86 | 30 |
| M25-MTSP | M251.5 | 13-18 | 9 | 100 | 30 |
| M27-MTSP | M271.5 | 13-18 | 9 | 100 | 30 |
| M28-MTSP | M281.5 | 13-18 | 9 | 100 | 30 |
| M30-MTSP | M301.5 | 13-18 | 9 | 100 | 30 |
| M30-MTSP | M301.5 | 15-22 | 10 | 105 | 35 |
| M32-MTSP | M321.5 | 15-22 | 10 | 105 | 35 |
| M32-MTSP | M321.5 | 18-25 | 10 | 112 | 40 |
| M33-MTSP | M331.5 | 15-22 | 10 | 105 | 35 |
| M36-MTSP | M361.5 | 18-25 | 10 | 112 | 40 |
| M37-MTSP | M371.5 | 18-25 | 10 | 112 | 40 |
| M40-MTSP | M401.5 | 25-33 | 11 | 120 | 45 |
| M42-MTSP | M421.5 | 22-30 | 11 | 120 | 45 |
| M47-MTSP | M471.5 | 25-33 | 11 | 130 | 50 |
| M48-MTSP | M481.5 | 25-33 | 11 | 130 | 50 |
| M50-MTSP | M501.5 | 32-38 | 12 | 135 | 55 |
| M54-MTSP | M541.5 | 32-38 | 12 | 135 | 57 |
| M56-MTSP | M561.5 | 32-38 | 13 | 135 | 55 |
| M60-MTSP | M601.5 | 37-44 | 13 | 142 | 64 |
| M63-MTSP | M631.5 | 37-44 | 14 | 142 | 64 |
| M64-MTSP | M642 | 37-44 | 14 | 142 | 64 |
| M70-MTSP | M702 | 42-52 | 15 | 150 | 72 |
| M72-MTSP | M722 | 42-52 | 15 | 150 | 72 |
| M75-MTSP | M752 | 42-52 | 15 | 150 | 72 |
| M80-MTSP | M802 | 52-62 | 16 | 158 | 86 |
| M88-MTSP | M882 | 62-70 | 18 | 160 | 96 |
| M90-MTSP | M902 | 62-70 | 18 | 160 | 96 |
| Code 产品编号 | Thread 螺牙规格 | Cable Range (mm) 适用电缆 | Thread Length GL (mm) 螺纹长度 | Body Height H+GL (mm) 结合长度 | Spanner Size (mm) 扳手径 |
|---|---|---|---|---|---|
| PG7-MTSP | PG7 | 3-6.5 | 7 | 65 | 14 |
| PG9-MTSP | PG9 | 4-8 | 8 | 68 | 17 |
| PG11-MTSP | PG11 | 5-10 | 8 | 68 | 20 |
| PG13.5-MTSP | PG13.5 | 6-12 | 8 | 76 | 22 |
| PG16-MTSP | PG16 | 10-14 | 8 | 76 | 24 |
| PG19-MTSP | PG19 | 10-14 | 9 | 80 | 24 |
| PG21-MTSP | PG21 | 13-18 | 9 | 85 | 30 |
| PG25-MTSP | PG25 | 15-22 | 10 | 100 | 35 |
| PG29-MTSP | PG29 | 18-25 | 10 | 105 | 40 |
