- Thread: PG thread.

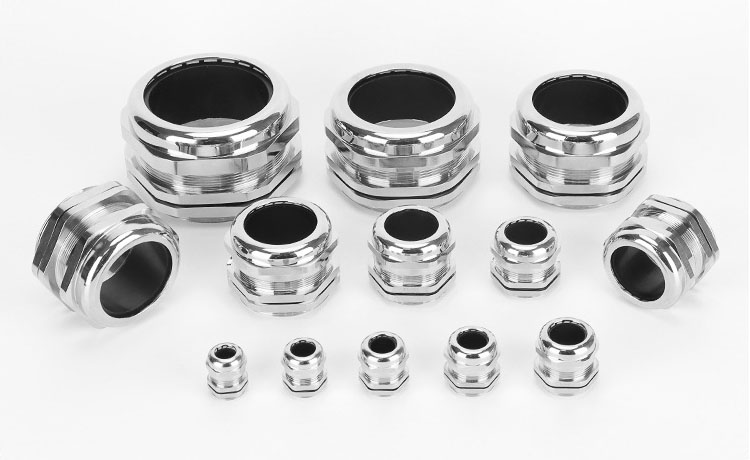

- Materials: Brass with nickel plated for body, Nylon PA for plastic claw. NBR for sealing insert and O-sealing ring.
- Protection degree: IP68-10 Bar.
- Working temperature: -40℃ to 100℃ in static state, or instantaneous heat resistance up to 120℃.
- Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
- Remark: Customization is available.

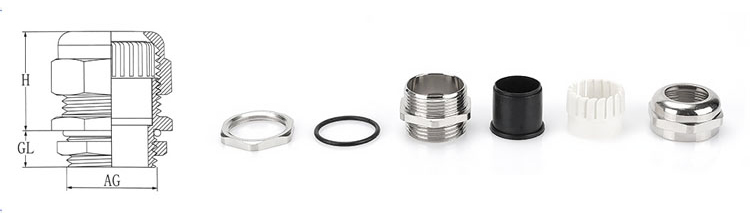

| Code 产品编号 | Thread 螺牙规格 | Cable Range (mm) 适用电缆 | Thread Diameter AG (mm) 螺纹外径 | Thread Length GL (mm) 螺纹长度 | Joint Length H (mm) 接合长度 | Spanner Size (mm) 扳手径 |
|---|---|---|---|---|---|---|
| PG7-MT | PG7 | 3-6.5 | 12.5 | 7 | 18 | 14 |
| PG9-MT | PG9 | 4-8 | 15.2 | 8 | 20 | 18 |
| PG11-MT | PG11 | 5-10 | 18.6 | 8 | 21 | 20/21 |
| PG13.5-MT | PG13.5 | 6-12 | 20.4 | 8 | 22 | 22 |
| PG16-MT | PG16 | 10-14 | 22.5 | 8 | 23 | 24 |
| PG19-MT | PG19 | 12-16 | 24.8 | 9 | 25 | 27 |
| PG21-MT | PG21 | 13-18 | 28.3 | 9 | 27 | 30/32 |
| PG25-MT | PG25 | 17-21 | 32 | 10 | 28 | 35 |
| PG29-MT | PG29 | 18-22 | 37 | 10 | 31 | 40 |
| PG36-MT | PG36 | 25-32 | 47 | 12 | 37 | 50 |
| PG42-MT | PG42 | 32-38 | 54 | 13 | 38 | 57 |
| PG48-MT | PG48 | 37-44 | 59.3 | 14 | 38 | 64 |
| PG63-MT | PG63 | 42-50 | 72 | 15 | 43 | 78 |
