- Materials: Nylon 66, 94V-2, agreed by UL. Acid and corrode resisting, insulate, last long and not apt to age.

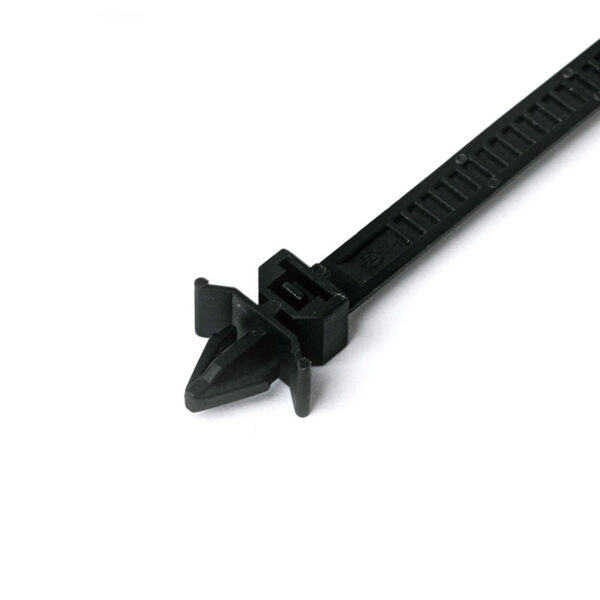

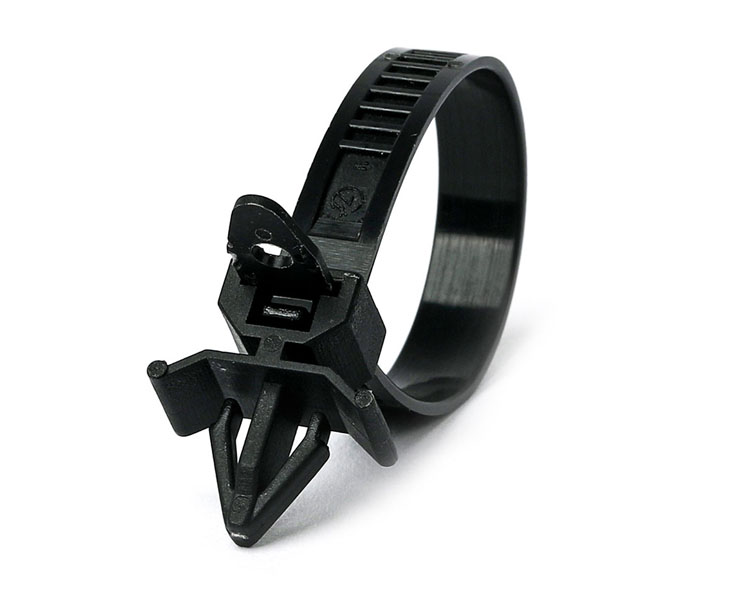

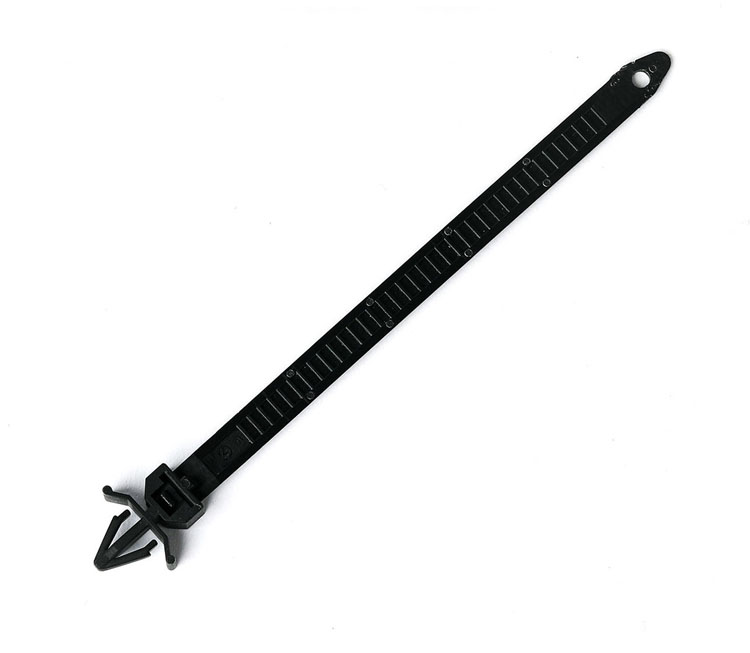

- Usage: Insert tie to the hole of table and tighten it.

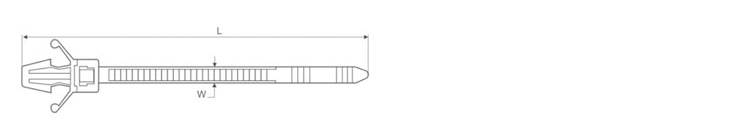

| Item No. 产品规格 | Length mm(inch) 长度 | Width (mm) 宽度 | Bundle Diameter (mm) 捆扎范围 | Tensile Strength 承受力 | Hole Dia (mm) 孔径 | Panel Thickness (mm) 基板厚度 | |
|---|---|---|---|---|---|---|---|
| LBS | KGS | ||||||
| GS-100PT | 100(4) | 2.5 | 25 | 18 | 8 | 4.5 | 2.4 |
| GS-150PT | 150(6) | 3.6 | 35 | 40 | 18 | 4.6 | 2.3 |
| GS-160PT | 160(8) | 4.8 | 35 | 50 | 22 | 6.0 | 2.5 |
| GS-200PT | 200(8) | 4.8 | 50 | 50 | 22 | 6.0 | 3.0 |
